Strautmann Giga-Vitesse 3602 (new and in stock)

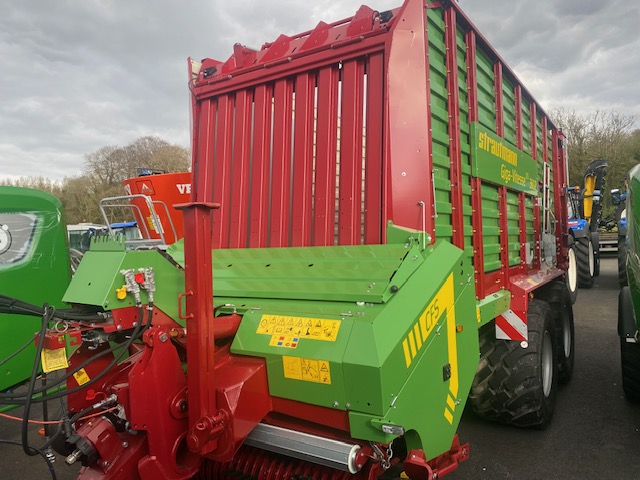

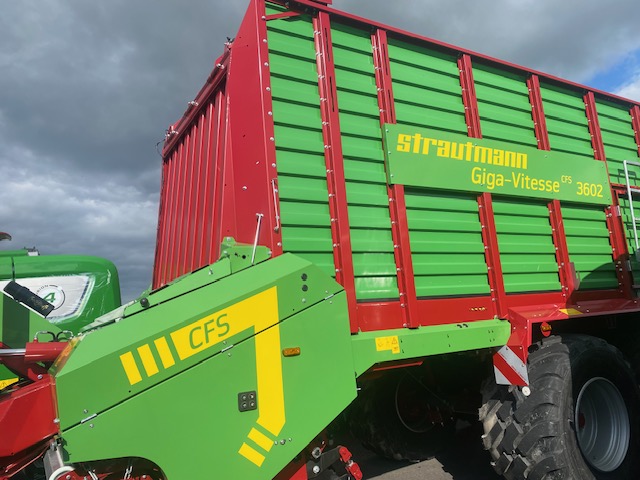

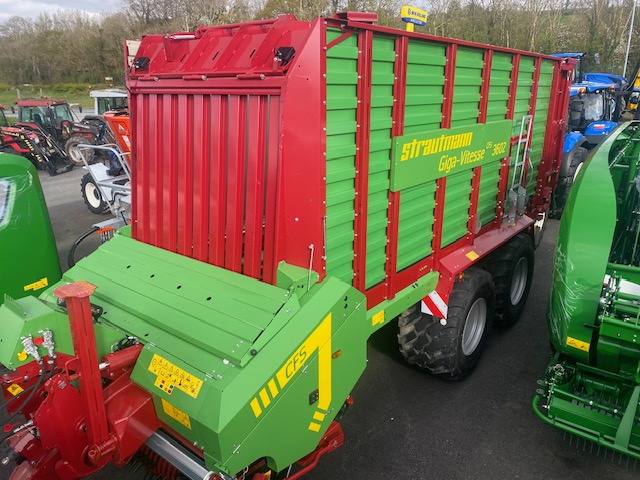

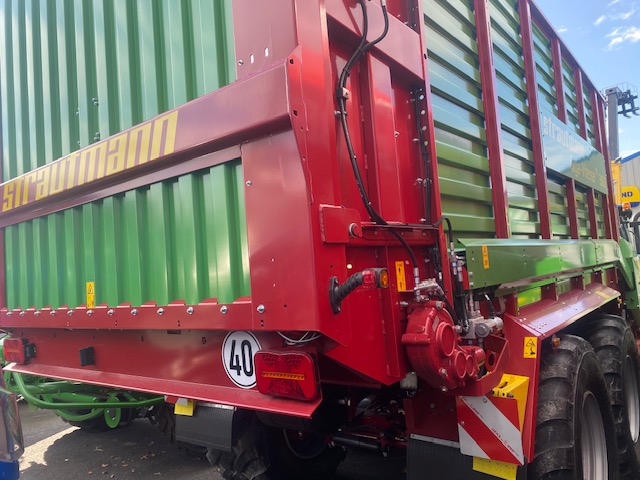

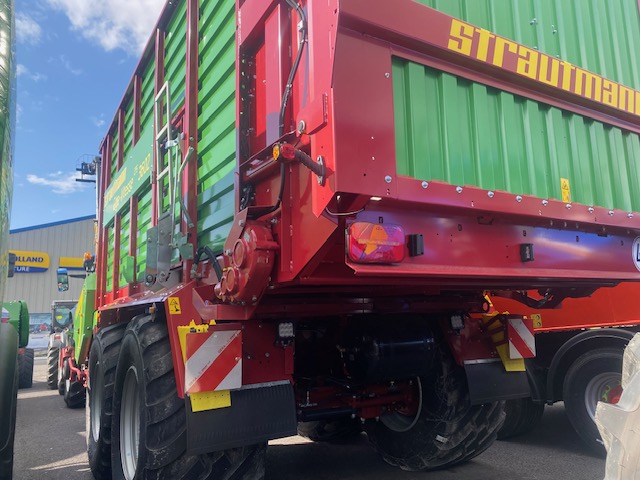

Strautmann Giga-Vitisse 3602 silage wagon (NEW)

The wider 2.25m 02 pick-up means that in fields where grass has been poorly raked and left in wide swathes, and also around headlands and corners, drivers will find efficient pick-up much easier. The new rotor design further enhances the action of the CFS by ensuring an even grass density at the outside of the chopper rotor which in turn densely fills the full width of the wagon.

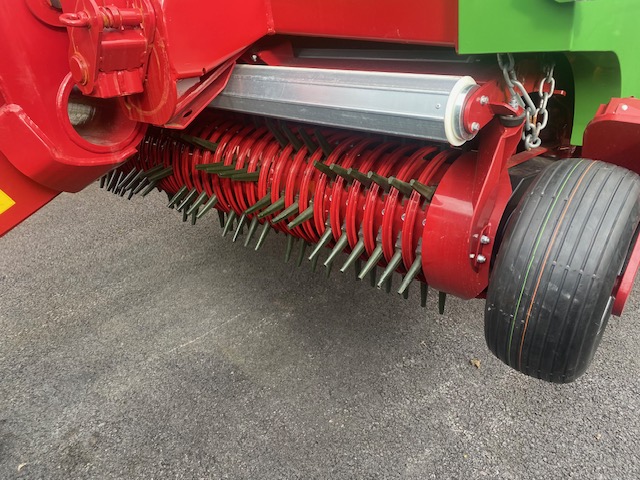

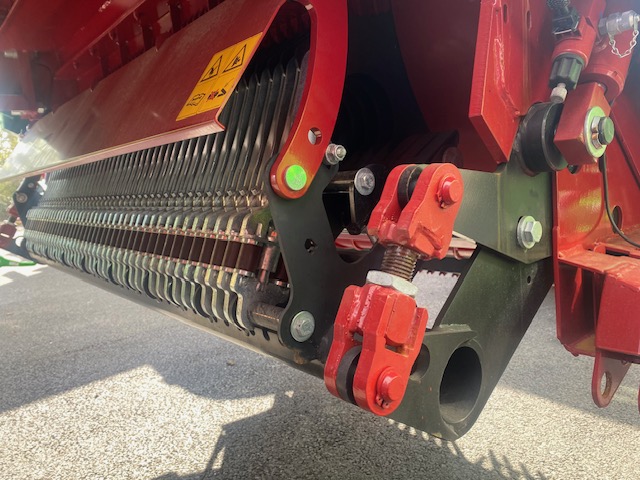

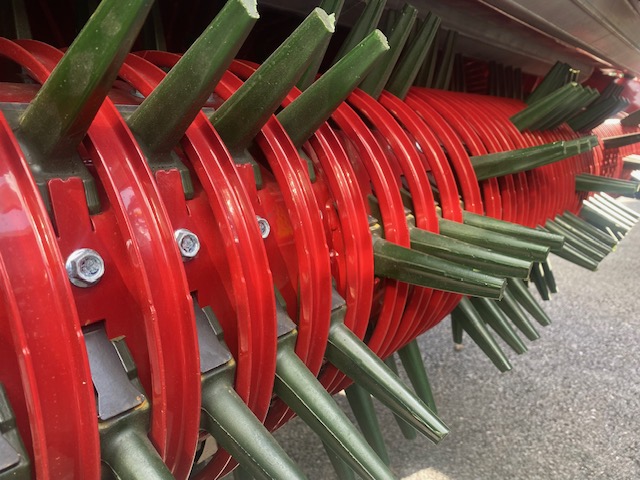

In this new 02 model range, the conveying unit has been completely revised. The camless pick-up with 6 V-shaped tine rows is equipped with plastic strippers preventing early tine wear and improving smooth running.

The guide wheels have also been modified: they can remain in position during road travel and do not need to be retracted. Furthermore, their height adjustment has been made easier, and hence the operating height of the pick-up is now also more easily adjusted. Unique to Strautmann forage wagons is the CFS roller which is situated between the pick-up and the rotor. It ensures grass is presented evenly and spread across the full width of the chopper rotor. The new chopper rotor features 8 helical rows of feeder tines which convey the material into the cargo space, across a width of 1600mm. Side augers, 250mm in width, have been incorporated at either end of the rotor. They reliably convey the material from the outsides of the pick-up inwards to the rotor tines. Thus, the working width of the rotor reaches an overall width of 2100mm. The rotor drive has also been revised: on the right-hand side, an oil-bath gearbox transmits the tractor power to a planetary gear set integrated in the rotor. Thus, the speed is only reduced at the rotor, which prevents high torques in the power train. In summary, the new model Giga Vitesse 3602 now has a 2.25m pick up, new side augers and 44 knives feeding a 1.54m rotor to give a 35mm chop. Other features remain the same except for a small increase (5cm) in transport width – to 2.86m – due to the wider pick-up.

For more info call sales on 068 50070
