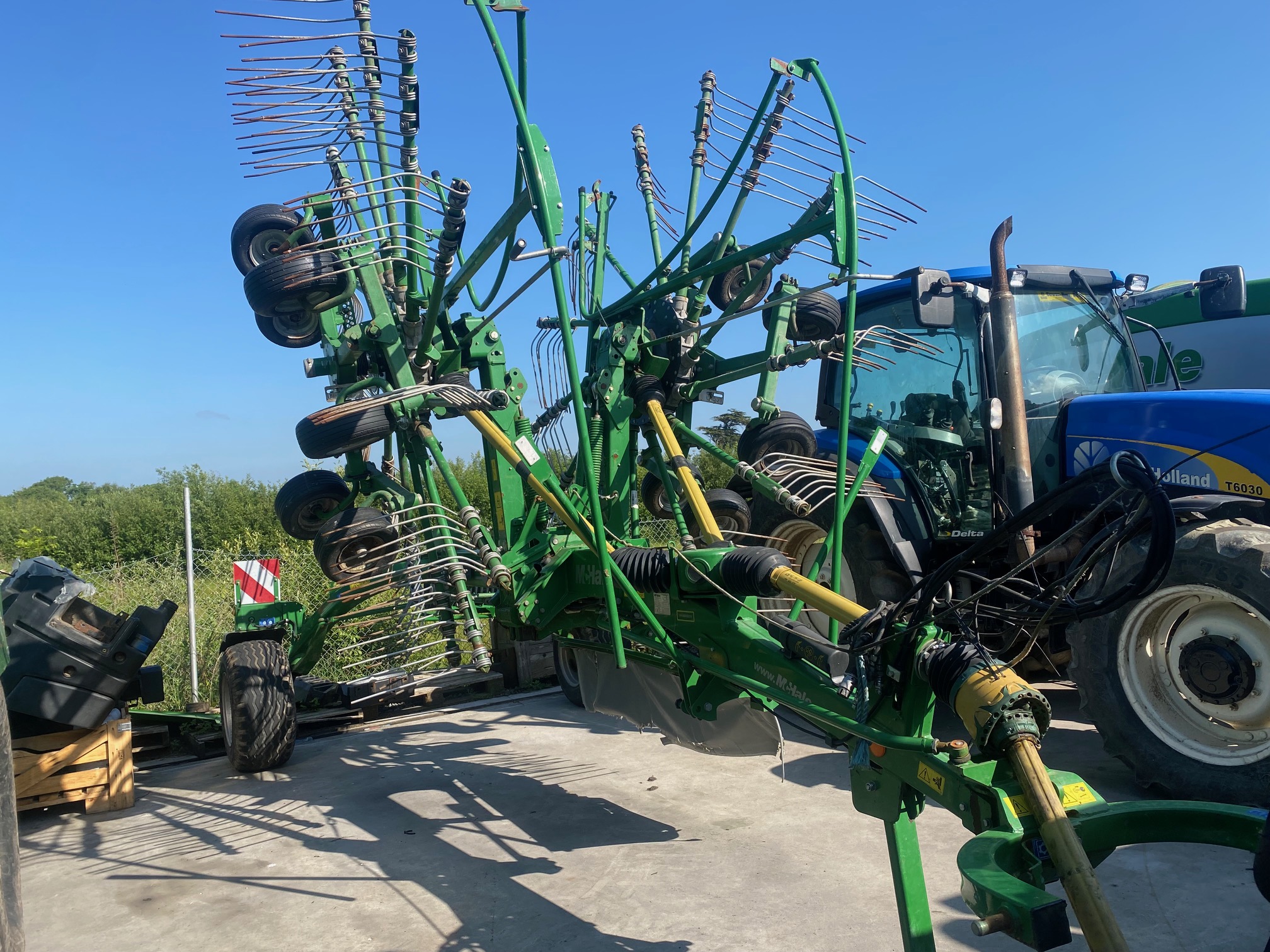

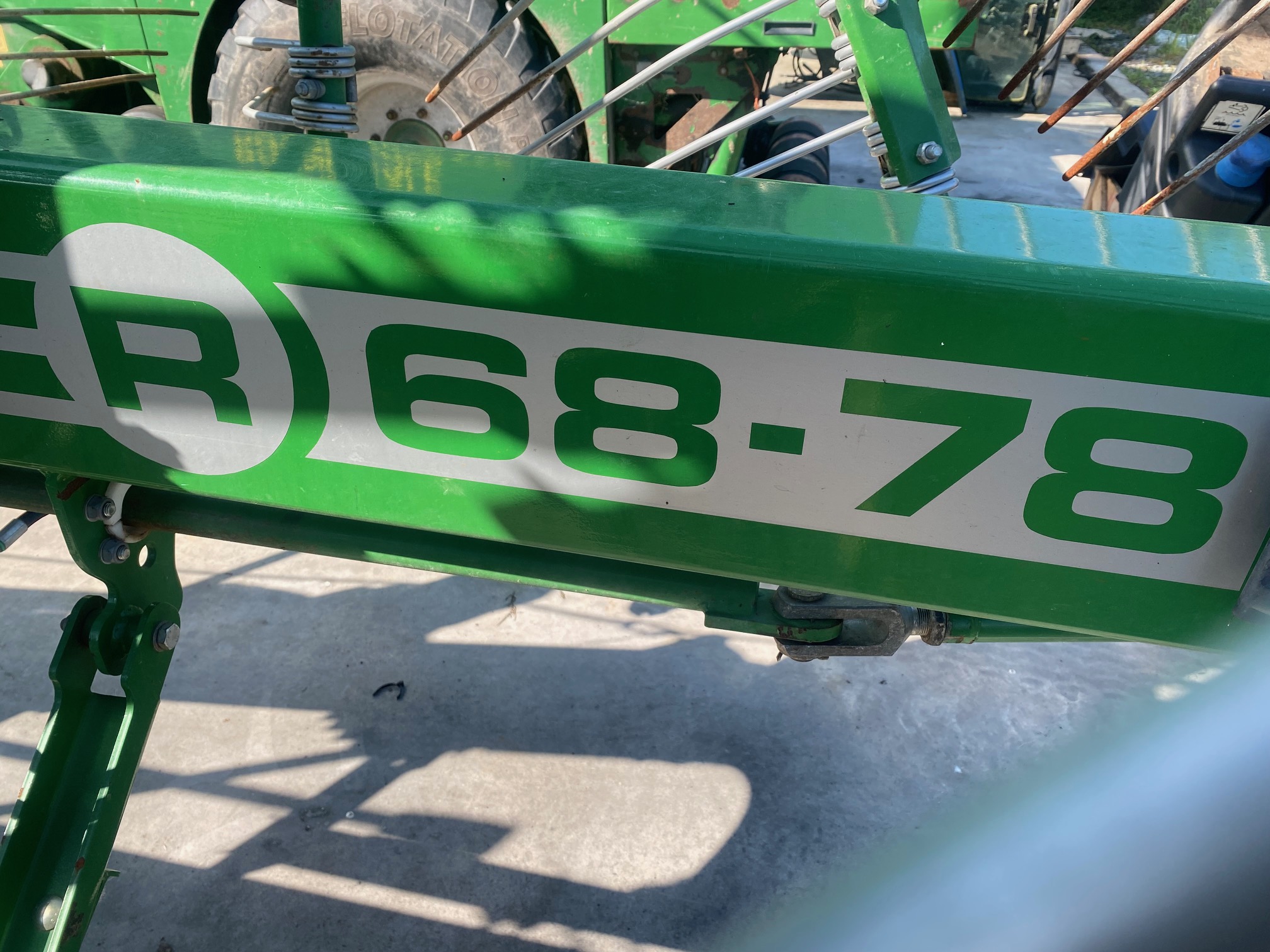

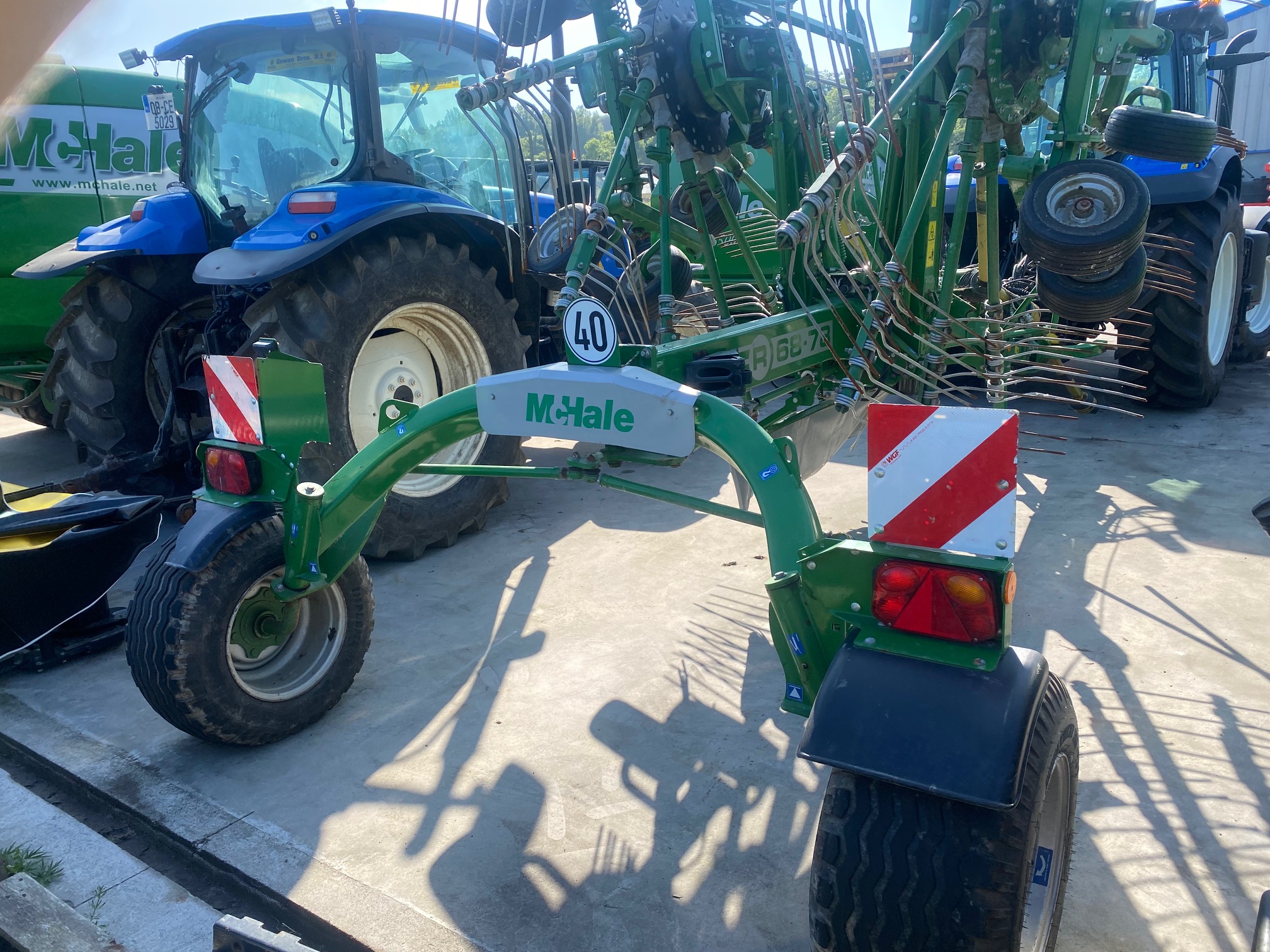

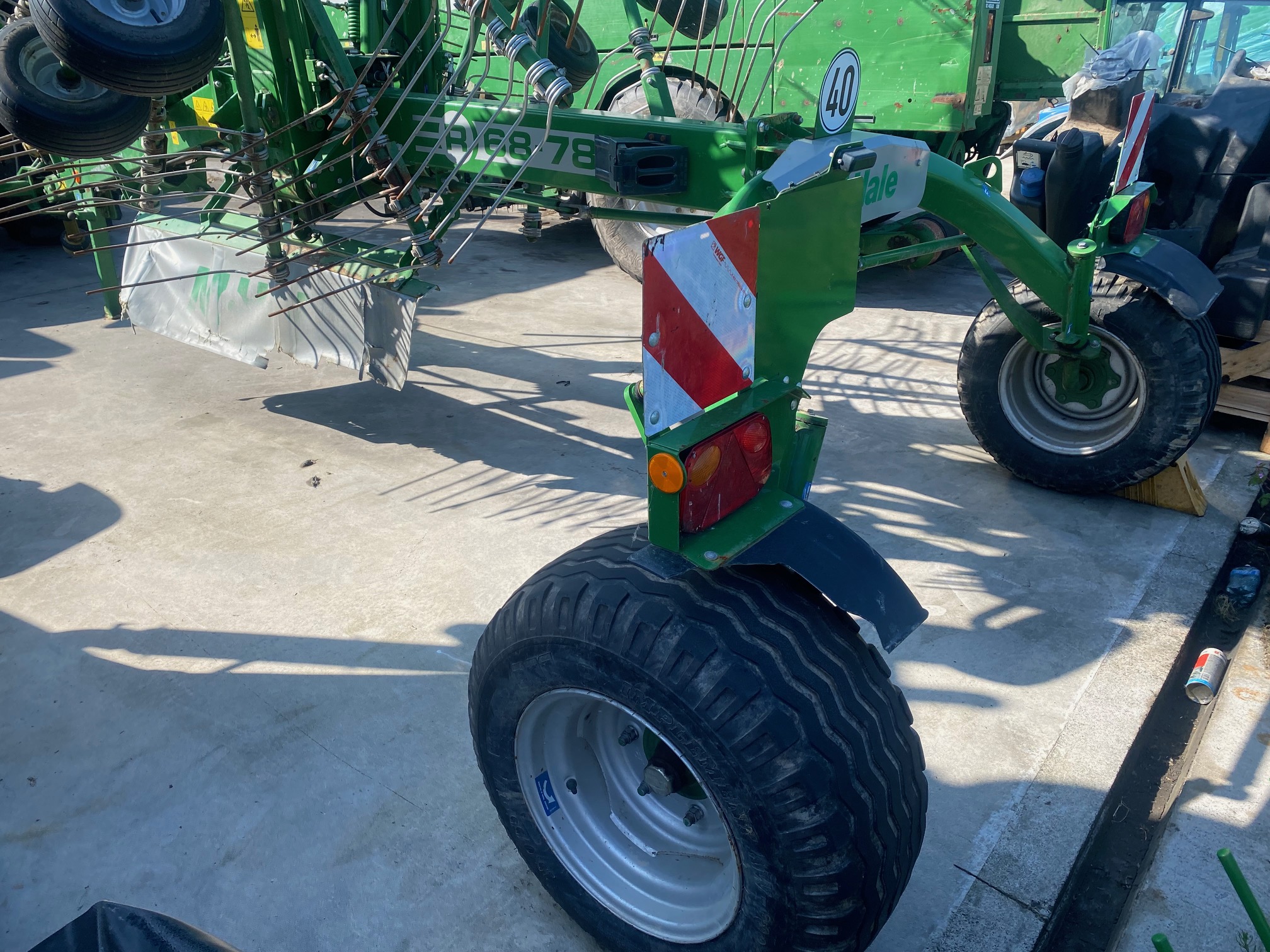

McHale R 68-78 Rake 2019 sold
McHale R 68-78 (2019) for sale
Rake is ready for work
For More info call John R Dowling on 083 0122925 or call 068 50070 ask for sales
To view call in at V31NH64
| 3 Metre Swath Gathering | 3 Swaths |
| Mounting Type | 2 Point Linkage |
| Mounting Category | Cat I & Cat II |
| Incab Adjustable Working Width (m/ ft) | 6.8m – 7.8m (22’ 4” – 25’ 7”) |
| Number of Rotors & Rotor Wheels | 2 rotors / 6 wheels per rotor |
| Rotor Diameter (m/ ft) | 3.2 m ( 10’ 6”) |
| Number of Arms | 13 |
| Number of Tines Per Arm | 4 |
| Tine Diameter (mm) | 10mm / 3 Coil |
| PTO Shaft Speed (rpm) | 540 RPM |
| PTO Driveline | Y Gearbox |
| Hydraulic Requirements | 1 x Single Acting &1 x Double Acting |
| Main Greasing | Grease Nipples |
| Axle & Wheels | 6 stud – 380/55/17 |
| Transport Width | 2.84 m (9’ 4”) |
| Transport Height | 3.99 m (13’ 1”) |
| Length | 6.05 m (19’ 8”) |
| Weight | 2100 kg (4630 lbs) |
